Applications

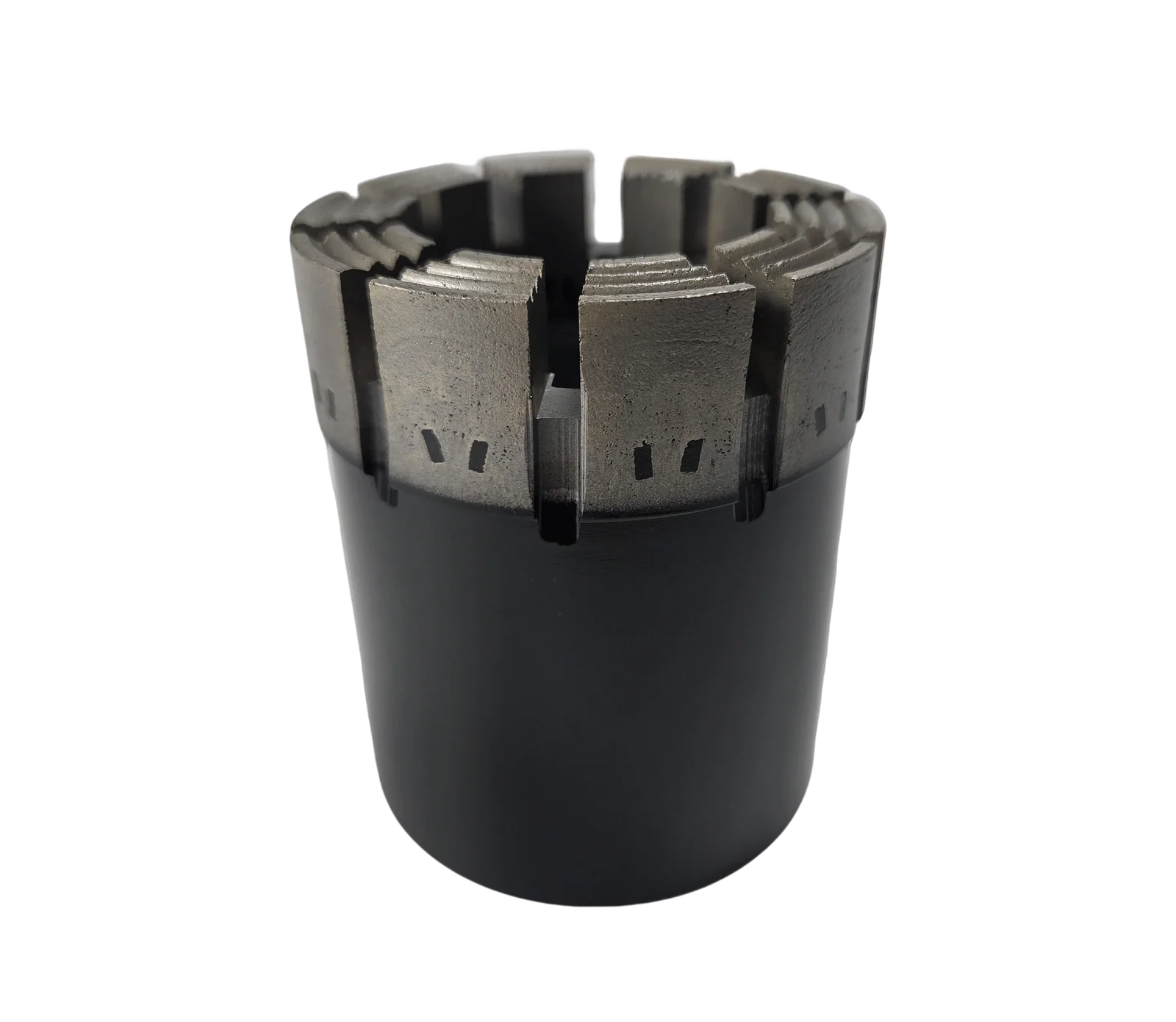

Impregnated diamond core bits are the standard choice for coring medium to very hard, abrasive rock such as granite, basalt, quartzite and hard limestone. Instead of a single layer of set stones, high-grade synthetic diamonds (compressive strength above 400 N) are spread through a pressureless sintered crown matrix. As the matrix wears, fresh diamonds are exposed, so the bit keeps cutting at a steady rate for its full crown height.
ALBARIQ Drilling supplies impregnated core bits for every common coring system: wireline Q-series in NQ, HQ and PQ; triple-tube NQ3, HQ3 and PQ3 for fractured or sensitive ground; and metric T2 and T6 double-tube barrels. They are used for geotechnical site investigation, foundation testing and mineral exploration across the UAE, Saudi Arabia and Qatar.
Which series do I need?
- Wireline Q-series (NQ, HQ, PQ): the standard for wireline coring with double-tube barrels. NQ is the most common site investigation size, and HQ and PQ give larger cores for weak ground and testing.
- Triple-tube (NQ3, HQ3, PQ3): for triple-tube barrels, whose split inner tube lets the core be laid out without being pushed out of the tube. This is the norm in geotechnical site investigation where fractured, weathered or soft cores must stay intact.
- Metric T2 and T6: for metric double-tube core barrels. T2 is the thin-walled series from 46 to 116 mm. T6 has thicker walls and a wider kerf, from 76 to 146 mm, for heavier-duty coring.
Choosing matrix, crown and waterways
- Matrix hardness: the matrix is matched to the rock. Hard, fine-grained rock needs a softer matrix so new diamonds are exposed quickly; abrasive or broken rock needs a harder matrix to slow wear. Our team can recommend a grade from your borehole logs.
- Crown height: a taller crown gives more metres per bit, and a shorter crown suits trial holes and changing ground.
- Waterways: standard waterways suit most rock, while face discharge and turbo designs help keep soft or easily washed cores intact.
Matching parts
For a complete coring string, combine the bit with a matching diamond reaming shell, core barrel outer tube, head assembly, wireline drill rods and overshot. For softer formations, see our PDC core bits and TC core bits.
Contact our team in the UAE, Saudi Arabia or Qatar to choose the series, matrix and crown height for your project.
Specifications
Wireline Q-series (double-tube)
| Size | Bit OD | Bit ID | Crown height | Matrix | Waterways |
|---|---|---|---|---|---|
| NQ | 75.7 mm | 47.6 mm | 12 / 14 / 16 mm | M3 – M11 | 6 – 8 |
| HQ | 95.6 mm | 63.5 mm | 12 / 14 / 16 mm | M3 – M11 | 10 – 12 |
| PQ | 122.6 mm | 85.0 mm | 12 / 14 / 16 mm | M1 – M14 | 12 – 14 |
Triple-tube (NQ3, HQ3, PQ3)
| Size | Crown height | Matrix | Waterways |
|---|---|---|---|
| NQ3 | 12 / 14 / 16 mm | M3 – M11 | 6 – 8 |
| HQ3 | 12 / 14 / 16 mm | M3 – M11 | 8 – 10 |
| PQ3 | 12 / 14 / 16 mm | M3 – M11 | 10 – 12 |
Metric T2 and T6 (double-tube)
| Series | Sizes | Crown height | Matrix | Waterways |
|---|---|---|---|---|
| T2 | 46, 56, 66, 76, 86, 101, 116 mm | 12 mm | M3 – M11 | 6 – 12 |
| T6 | 76, 86, 101, 116, 131, 146 mm | 12 mm | M3 – M11 | 6 – 12 |
All series: high-grade synthetic diamond (compressive strength above 400 N), pressureless sintered matrix. Waterway options: standard, turbo and face discharge. Crown height and matrix can be customised.
